10KW Power Frequency Pure Sine Wave Inverter
10KW Power Frequency Pure Sine Wave Inverter
Category: Pure Inverter
Wiices is a Chinese photovoltaic new energy manufacturer certified by the international certification facility SGS. Wiices also passed the ISO9001 quality management system certification and implemented ERP warehouse management.

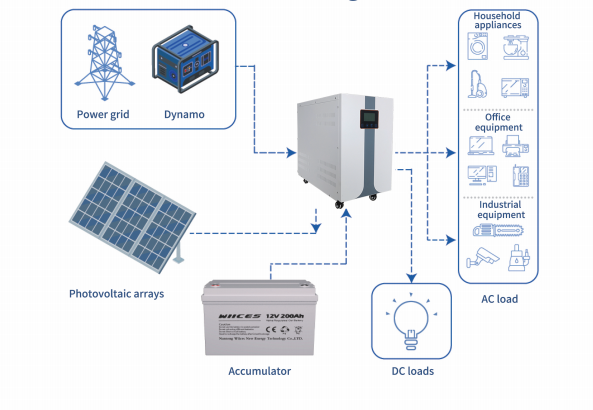

Schematic Diagram
Product Parameters
| Model | WS-10KW | WS-15KW |
| Peak power | 20KVA | 30KVA |
| Rated output power | 10KVA | 15KVA |
| nput voltage range | 190-250VAC±3V(USP Mode) | |
| nput frequency/power output | 50/60HZ±3%/220VAC(standard | |
| Alarm code | E01 E02 E03 E04 E05 E06 E07 E08 | |
| The outputvoltage and output frequency under mains | The output voltage under mains power isthe same asthe input voltage/The output frequency is the same as the input frequency | |
| output voltage and output frequency under inverter | 220VAC±39%/50HZ or 60HZ±1% | |
| output waveform under nverter | Sinusoid | |
| Battery type | External lead-acid battery or water batteryor lithium iron phosphate | |
| Battery voltage | 96VDC | |
| Maximum AC charging current | 30A | |
| Battery charging voltage range | 190-250VAC | |
| Conversion time | ≤10ms (upsMode)/≤20ms(INVMode | |
| Load-to-peakratio | (MAX)3:1 | |
| Standby powe rconsumption | Toroidal transformer no-load≤voltage0.5 | |
| Protection features | Under mains:inputovercurrent fuse protection/under inverter:overload protection short circuit protection,low voltage protection | |
| Function display | LCD dot matrix fine screen/Function keysvoice switching(Chinese and English)/Mode selection (mains priority battery priority,energy-saving mode]Charging current regulation (20%-100%)alarm tone (switch) | |
| The standby interface is displayed | ACinput voltage,output voltage,battery voltage,load ratio and other parameters fault display | |
| Sound prompts | Batter low voltage protection The buzzer beepsforalongtime | |
| The batter is low and the buzzer beepseverysecond | ||
| Overdrive:The buzzer beep for along time | ||
| If the overload is less than 130%,the buzzer will sound once a second,and the outputwill be turned off after 30S,and the output will be turned off after 300ms whenthe overload is greater than 150%. | ||
| The machine failure buzzer beeps fora long time | ||
| Operating/Storage/Relative Temperature | 0°℃-40℃/-15℃-45℃/-10℃-90°℃No condensation | |
| Noises | <45dB | |
| Machine Size(L*W*H)(mm)/Weight(KG) | 600*300*600/49 | 600*300*600/55 |
Product Accessories:
