High-Frequency Inverters
High-Frequency Inverters
Category: Car/On-board inverter
Wiices is a Chinese photovoltaic new energy manufacturer certified by the international certification facility SGS. Wiices also passed the ISO9001 quality management system certification and implemented ERP warehouse management.
Show In Detail

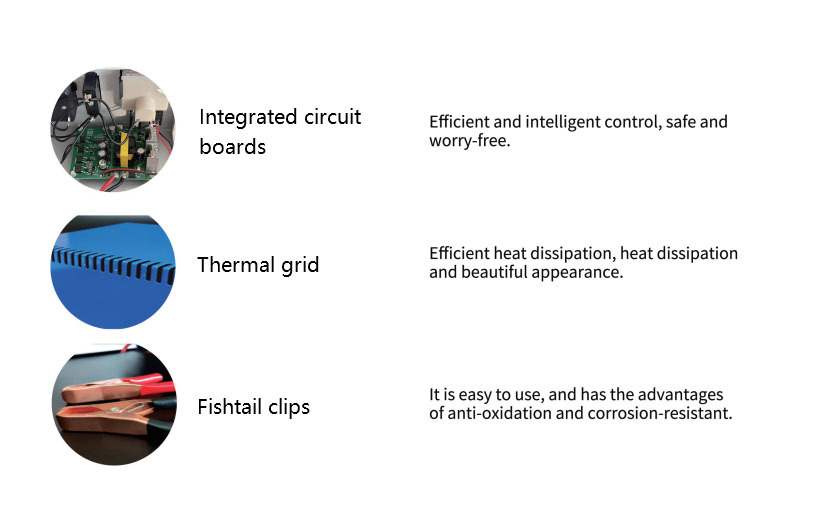

Product Features
Product Parameters
| Model | S-100 |
| Output voltage | 220V |
| Outputfrequency | 50-60HZ |
| DC input voltage | 12V |
| Current rating | 10A |
| Peak load value | 3:1 |
| Output voltage regulation | ±10% |
| Battery type | Lead-acid,colloidal,colloidal deep circulation,lithium battery |
| Output protection | Under inverter:overload,reverse connection,short circuit,overtemperature, overvoltage,undervoltage protection |
| LEDs indicate status | Green:Protect;Red:Work instructions |
| Storage temperature | 15℃~45℃ |
| Operating temperature | 0℃~60℃ |
| Relative temperature | 10℃~90℃No condensation |
| Noises | <55dB |
| Machine size(L*W*H)(mm) | 200*60*100 |
| FCL packing size(mm) | 520*420*320 |
| Net weight(KG) | 0.6 |
Product Accessories:
