Sine Wave UPS Inverter

Category: UPS

Wiices is a Chinese photovoltaic new energy manufacturer certified by the international certification facility SGS. Wiices also passed the ISO9001 quality management system certification and implemented ERP warehouse management.

Consult Contacts

Key words：Solar Power SystemVoltage Regulators

PRODUCT DETAILS

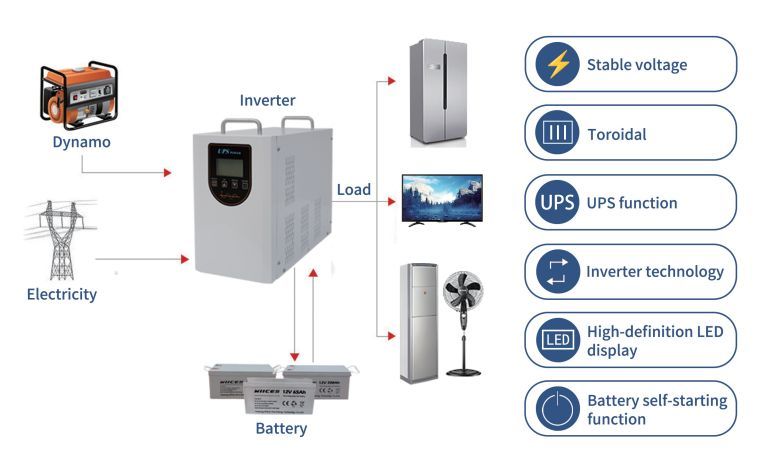

Principles And Characteristics

Product Parameters

Model		HB-300	HB-800	HB-1000	HB-2000	HB-3000	HB-5000
Rated capacity		500VA	800VA	1000VA	2000VA	3000VA	5000VA
Rated power		400W	640W	800W	1600W	2400W	4000W
Rated power		Toroida transformers
Panel		LED/LCD
Display status		Mains status/standby/battery status
Working mode		Optional mains status/PV priority
Input	Voltage	190-240V
	Frequency	50-60HZ
Output	Voltage	Inverter output 220V±3%
	Frequency	50/60HZ,determined by mains frequency
	Waveform	Pure sine wave
	Protection features	Protection from overload/high temperature/output high voltage/output low voltage/battery low voltage/short circuit/overcharge/overdischarge/positive and negative reverse connection
Battery voltage		12VDC/24VDC				24VDC	48VDC
Charging voltage		13.6V±0.3V				27.2V±0.6V
Low battery voltage limit		0.9V±0.3V				21.8V±0.5V
Battery low voltage protection points		10.2V±0.3V				20.5V±0.5V
Charging current		The maximum 10A/15A/20A can be selected
Operating temperature		0℃~40℃
Relative humidity		10%-90%,No condensation
Storage temperature		—15℃~45℃
Machine Size(LWH)(mm)		280145225	280145225	280145225	400325200	400325200	400325200
WEIGHT(KG)		9	10	13	20	23	24.5
